Parse Tree-



  • The process of deriving a string is called as derivation.
  • The geometrical representation of a derivation is called as a parse tree or derivation tree.





1. Leftmost Derivation-



  • The process of deriving a string by expanding the leftmost non-terminal at each step is called as leftmost derivation.
  • The geometrical representation of leftmost derivation is called as a leftmost derivation tree.



Example-



Consider the following grammar-

S → aB / bA

S → aS / bAA / a

B → bS / aBB / b

(Unambiguous Grammar)



Let us consider a string w = aaabbabbba

Now, let us derive the string w using leftmost derivation.

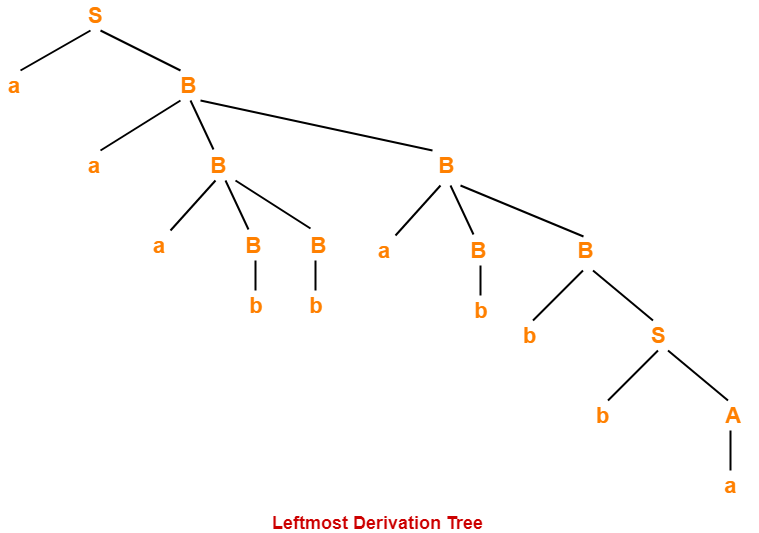

Leftmost Derivation-



S   → aB

→  aaBB                   (Using B → aBB)

→ aaaBBB                (Using B → aBB)

→ aaabBB                (Using B → b)

→ aaabbB                (Using B → b)

→ aaabbaBB            (Using B → aBB)

→ aaabbabB            (Using B → b)

→ aaabbabbS          (Using B → bS)

→ aaabbabbbA        (Using S → bA)

→ aaabbabbba         (Using A → a)





2. Rightmost Derivation-



  • The process of deriving a string by expanding the rightmost non-terminal at each step is called as rightmost derivation.
  • The geometrical representation of rightmost derivation is called as a rightmost derivation tree.



Example-



Consider the following grammar-

S → aB / bA

S → aS / bAA / a

B → bS / aBB / b

(Unambiguous Grammar)



Let us consider a string w = aaabbabbba

Now, let us derive the string w using rightmost derivation.



Rightmost Derivation-



S   → aB

→  aaBB                    (Using B → aBB)

→ aaBaBB                 (Using B → aBB)

→ aaBaBbS               (Using B → bS)

→ aaBaBbbA             (Using S → bA)

→ aaBaBbba              (Using A → a)

→ aaBabbba              (Using B → b)

→ aaaBBabbba          (Using B → aBB)

→ aaaBbabbba          (Using B → b)

→ aaabbabbba           (Using B → b)





NOTES

  • For unambiguous grammars, Leftmost derivation and Rightmost derivation represents the same parse tree.
  • For ambiguous grammars, Leftmost derivation and Rightmost derivation represents different parse trees.



Here,

  • The given grammar was unambiguous.
  • That is why, leftmost derivation and rightmost derivation represents the same parse tree.



Leftmost Derivation Tree = Rightmost Derivation Tree



Also Read- Ambiguous Grammar



Properties Of Parse Tree-



  • Root node of a parse tree is the start symbol of the grammar.
  • Each leaf node of a parse tree represents a terminal symbol.
  • Each interior node of a parse tree represents a non-terminal symbol.
  • Parse tree is independent of the order in which the productions are used during derivations.



Yield Of Parse Tree-



  • Concatenating the leaves of a parse tree from the left produces a string of terminals.
  • This string of terminals is called as yield of a parse tree.



PRACTICE PROBLEMS BASED ON DERIVATIONS AND PARSE TREE-



Problem-01:



Consider the grammar-

S → bB / aA

A → b / bS / aAA

B → a / aS / bBB



For the string w = bbaababa, find-

  1. Leftmost derivation
  2. Rightmost derivation
  3. Parse Tree



Solution-



1. Leftmost Derivation-



S   → bB

→ bbBB              (Using B → bBB)

→ bbaB              (Using B → a)

→ bbaaS            (Using B → aS)

→ bbaabB          (Using S → bB)

→ bbaabaS        (Using B → aS)

→ bbaababB      (Using S → bB)

→ bbaababa       (Using B → a)



2. Rightmost Derivation-



S   → bB

→ bbBB                (Using B → bBB)

→ bbBaS              (Using B → aS)

→ bbBabB            (Using S → bB)

→ bbBabaS          (Using B → aS)

→ bbBababB        (Using S → bB)

→ bbBababa        (Using B → a)

→ bbaababa         (Using B → a)



3. Parse Tree-





  • Whether we consider the leftmost derivation or rightmost derivation, we get the above parse tree.
  • The reason is given grammar is unambiguous.



Problem-02:



Consider the grammar-

S → A1B

A → 0A / ∈

B → 0B / 1B / ∈



For the string w = 00101, find-

  1. Leftmost derivation
  2. Rightmost derivation
  3. Parse Tree



Solution-



1. Leftmost Derivation-



S   → A1B

→ 0A1B              (Using A → 0A)

→ 00A1B            (Using A → 0A)

→ 001B              (Using A → ∈)

→ 0010B            (Using B → 0B)

→ 00101B          (Using B → 1B)

→ 00101             (Using B → ∈)



2. Rightmost Derivation-



S   → A1B

→ A10B                (Using B → 0B)

→ A101B              (Using B → 1B)

A101                (Using B → ∈)

→ 0A101              (Using A → 0A)

→ 00A101            (Using A → 0A)

→ 00101               (Using A → ∈)



3. Parse Tree-





  • Whether we consider the leftmost derivation or rightmost derivation, we get the above parse tree.
  • The reason is given grammar is unambiguous.



To gain better understanding about Derivations and Parse Tree,

Watch this Video Lecture



Next Article- Elimination of Left Recursion



Get more notes and other study material of Theory of Automata and Computation.

Watch video lectures by visiting our YouTube channel LearnVidFun.
