Quadruples, Triples and Indirect Triples

Three Address Code-



Before you go through this article, make sure that you have gone through the previous article on Three Address Code.



We have discussed-

  • Three Address Code is a form of an intermediate code.
  • It is generated by the compiler for implementing Code Optimization.
  • It uses maximum three addresses to represent any statement.



In this article, we will discuss Implementation of Three Address Code.



Implementation-



Three Address Code is implemented as a record with the address fields.

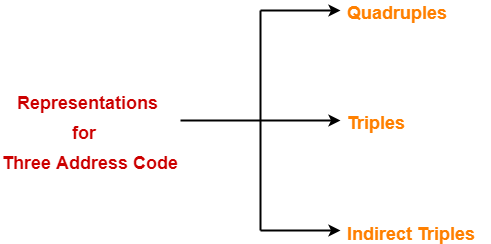

The commonly used representations for implementing Three Address Code are-





  1. Quadruples
  2. Triples
  3. Indirect Triples



1. Quadruples-



In quadruples representation, each instruction is splitted into the following 4 different fields-

op, arg1, arg2, result

Here-

  • The op field is used for storing the internal code of the operator.
  • The arg1 and arg2 fields are used for storing the two operands used.
  • The result field is used for storing the result of the expression.



Exceptions



There are following exceptions-



Exception-01:



To represent the statement x = op y, we place-

  • op in the operator field
  • y in the arg1 field
  • x in the result field
  • arg2 field remains unused



Exception-02:



To represent the statement like param t1, we place-

  • param in the operator field
  • t1 in the arg1 field
  • Neither arg2 field nor result field is used



Exception-03:



To represent the unconditional and conditional jump statements, we place label of the target in the result field.



2. Triples-



In triples representation,

  • References to the instructions are made.
  • Temporary variables are not used.



3. Indirect Triples-



  • This representation is an enhancement over triples representation.
  • It uses an additional instruction array to list the pointers to the triples in the desired order.
  • Thus, instead of position, pointers are used to store the results.
  • It allows the optimizers to easily re-position the sub-expression for producing the optimized code.



PRACTICE PROBLEMS BASED ON QUADRUPLES, TRIPLES & INDIRECT TRIPLES-



Problem-01:



Translate the following expression to quadruple, triple and indirect triple-

a + b x c / e ↑ f + b x c



Solution-



Three Address Code for the given expression is-



T1 = e ↑ f

T2 = b x c

T3 = T2 / T1

T4 = b x a

T5 = a + T3

T6 = T5 + T4



Now, we write the required representations-



Quadruple Representation-



LocationOpArg1Arg2Result
(0)efT1
(1)xbcT2
(2)/T2T1T3
(3)xbaT4
(4)+aT3T5
(5)+T5T4T6



Triple Representation-



LocationOpArg1Arg2
(0)ef
(1)xbc
(2)/(1)(0)
(3)xba
(4)+a(2)
(5)+(4)(3)



Indirect Triple Representation-



Statement
35(0)
36(1)
37(2)
38(3)
39(4)
40(5)



LocationOpArg1Arg2
(0)ef
(1)xbe
(2)/(1)(0)
(3)xba
(4)+a(2)
(5)+(4)(3)



Problem-02:



Translate the following expression to quadruple, triple and indirect triple-

a = b x – c + b x – c



Solution-



Three Address Code for the given expression is-



T1 = uminus c

T2 = b x T1

T3 = uminus c

T4 = b x T3

T5 = T2 + T4

a = T5



Now, we write the required representations-



Quadruple Representation-



LocationOpArg1Arg2Result
(1)uminuscT1
(2)xbT1T2
(3)uminuscT3
(4)xbT3T4
(5)+T2T4T5
(6)=T5a



Triple Representation-



LocationOpArg1Arg2
(1)uminusc
(2)xb(1)
(3)uminusc
(4)xb(3)
(5)+(2)(4)
(6)=a(5)



Indirect Triple Representation-



Statement
35(1)
36(2)
37(3)
38(4)
39(5)
40(6)



LocationOpArg1Arg2
(1)uminusc
(2)xb(1)
(3)uminusc
(4)xb(3)
(5)+(2)(4)
(6)=a(5)



To gain better understanding about Quadruples, Triples and Indirect Triples,

Watch this Video Lecture



Download Handwritten Notes Here-





Next Article- Basic Blocks and Flow Graphs



Get more notes and other study material of Compiler Design.

Watch video lectures by visiting our YouTube channel LearnVidFun.
