Binary Tree-



Before you go through this article, make sure that you gone through the previous article on Binary Trees.



We have discussed-

  • Binary tree is a special tree data structure.
  • In a binary tree, each node can have at most 2 children.
  • There are following types of binary trees-





In this article, we will discuss properties of binary trees.



Binary Tree Properties-



Important properties of binary trees are-



Property-01:



Minimum number of nodes in a binary tree of height H

= H + 1



Example-

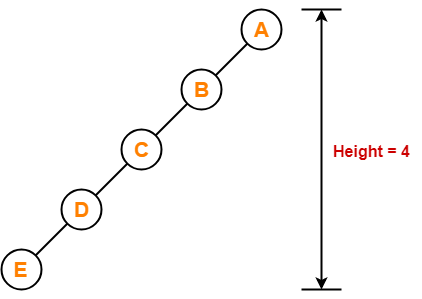

To construct a binary tree of height = 4, we need at least 4 + 1 = 5 nodes.





Property-02:



Maximum number of nodes in a binary tree of height H

= 2H+1 – 1



Example-



Maximum number of nodes in a binary tree of height 3

= 23+1 – 1

= 16 – 1

= 15 nodes

Thus, in a binary tree of height = 3, maximum number of nodes that can be inserted = 15.





We can not insert more number of nodes in this binary tree.



Property-03:



Total Number of leaf nodes in a Binary Tree

= Total Number of Degree-2 nodes + 1



Example-



Consider the following binary tree-





Here,

  • Number of leaf nodes = 3
  • Number of degree-2 nodes = 2



Clearly, number of leaf nodes is one greater than number of degree-2 nodes.

This verifies the above relation.



NOTE

It is interesting to note that-

Number of leaf nodes in any binary tree depends only on the number of degree-2 nodes.



Property-04:



Maximum number of nodes at any level ‘L’ in a binary tree

= 2L



Example-



Maximum number of nodes at level-2 in a binary tree

= 22

= 4

Thus, in a binary tree, maximum number of nodes that can be present at level-2 = 4.





To gain better understanding about Binary Tree Properties,

Watch this Video Lecture



PRACTICE PROBLEMS BASED ON BINARY TREE PROPERTIES-



Problem-01:



A binary tree T has n leaf nodes. The number of nodes of degree-2 in T is ______?

  1. log2n
  2. n-1
  3. n
  4. 2n



Solution-



Using property-3, we have-

Number of degree-2 nodes

= Number of leaf nodes – 1

= n – 1



Thus, Option (B) is correct.



Problem-02:



In a binary tree, for every node the difference between the number of nodes in the left and right subtrees is at most 2. If the height of the tree is h > 0, then the minimum number of nodes in the tree is ______?

  1. 2h-1
  2. 2h-1 + 1
  3. 2h – 1
  4. 2h



Solution-



Let us assume any random value of h. Let h = 3.

Then the given options reduce to-

  1. 4
  2. 5
  3. 7
  4. 8



Now, consider the following binary tree with height h = 3-





  • This binary tree satisfies the question constraints.
  • It is constructed using minimum number of nodes.



Thus, Option (B) is correct.



Problem-03:



In a binary tree, the number of internal nodes of degree-1 is 5 and the number of internal nodes of degree-2 is 10. The number of leaf nodes in the binary tree is ______?

  1. 10
  2. 11
  3. 12
  4. 15



Solution-



Using property-3, we have-

Number of leaf nodes in a binary tree

= Number of degree-2 nodes + 1

= 10 + 1

= 11



Thus, Option (B) is correct.



Problem-04:



The height of a binary tree is the maximum number of edges in any root to leaf path. The maximum number of nodes in a binary tree of height h is ______?

  1. 2h
  2. 2h-1 – 1
  3. 2h+1 – 1
  4. 2h+1



Solution-



Using property-2, Option (C) is correct.



Problem-05:



A binary tree T has 20 leaves. The number of nodes in T having 2 children is ______?



Solution-



Using property-3, correct answer is 19.



To watch video solutions and practice more problems,

Watch this Video Lecture
