Separate Chaining | Collision Resolution Techniques

Hashing in Data Structure-



Before you go through this article, make sure that you have gone through the previous article on Hashing.



We have discussed-

  • Hashing is a well-known searching technique.
  • It minimizes the number of comparisons while performing the search.
  • It completes the search with constant time complexity O(1).



In this article, we will discuss about Collisions in Hashing.



Collision in Hashing-



In hashing,

  • Hash function is used to compute the hash value for a key.
  • Hash value is then used as an index to store the key in the hash table.
  • Hash function may return the same hash value for two or more keys.



When the hash value of a key maps to an already occupied bucket of the hash table,

it is called as a Collision.



Collision Resolution Techniques-



Collision Resolution Techniques are the techniques used for resolving or handling the collision.



Collision resolution techniques are classified as-





  1. Separate Chaining
  2. Open Addressing



In this article, we will discuss about separate chaining.



Separate Chaining-



To handle the collision,

  • This technique creates a linked list to the slot for which collision occurs.
  • The new key is then inserted in the linked list.
  • These linked lists to the slots appear like chains.
  • That is why, this technique is called as separate chaining.



Time Complexity-



For Searching-



  • In worst case, all the keys might map to the same bucket of the hash table.
  • In such a case, all the keys will be present in a single linked list.
  • Sequential search will have to be performed on the linked list to perform the search.
  • So, time taken for searching in worst case is O(n).



For Deletion-



  • In worst case, the key might have to be searched first and then deleted.
  • In worst case, time taken for searching is O(n).
  • So, time taken for deletion in worst case is O(n).



Load Factor (α)-



Load factor (α) is defined as-





If Load factor (α) = constant, then time complexity of Insert, Search, Delete = Θ(1)



PRACTICE PROBLEM BASED ON SEPARATE CHAINING-



Problem-



Using the hash function ‘key mod 7’, insert the following sequence of keys in the hash table-

50, 700, 76, 85, 92, 73 and 101



Use separate chaining technique for collision resolution.



Solution-



The given sequence of keys will be inserted in the hash table as-



Step-01:



  • Draw an empty hash table.
  • For the given hash function, the possible range of hash values is [0, 6].
  • So, draw an empty hash table consisting of 7 buckets as-





Step-02:



  • Insert the given keys in the hash table one by one.
  • The first key to be inserted in the hash table = 50.
  • Bucket of the hash table to which key 50 maps = 50 mod 7 = 1.
  • So, key 50 will be inserted in bucket-1 of the hash table as-





Step-03:



  • The next key to be inserted in the hash table = 700.
  • Bucket of the hash table to which key 700 maps = 700 mod 7 = 0.
  • So, key 700 will be inserted in bucket-0 of the hash table as-





Step-04:



  • The next key to be inserted in the hash table = 76.
  • Bucket of the hash table to which key 76 maps = 76 mod 7 = 6.
  • So, key 76 will be inserted in bucket-6 of the hash table as-

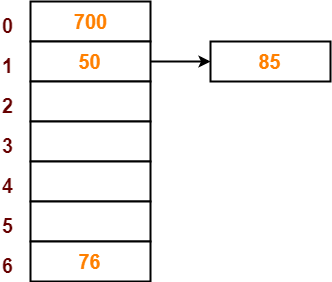

Step-05:



  • The next key to be inserted in the hash table = 85.
  • Bucket of the hash table to which key 85 maps = 85 mod 7 = 1.
  • Since bucket-1 is already occupied, so collision occurs.
  • Separate chaining handles the collision by creating a linked list to bucket-1.
  • So, key 85 will be inserted in bucket-1 of the hash table as-





Step-06:



  • The next key to be inserted in the hash table = 92.
  • Bucket of the hash table to which key 92 maps = 92 mod 7 = 1.
  • Since bucket-1 is already occupied, so collision occurs.
  • Separate chaining handles the collision by creating a linked list to bucket-1.
  • So, key 92 will be inserted in bucket-1 of the hash table as-





Step-07:



  • The next key to be inserted in the hash table = 73.
  • Bucket of the hash table to which key 73 maps = 73 mod 7 = 3.
  • So, key 73 will be inserted in bucket-3 of the hash table as-





Step-08:



  • The next key to be inserted in the hash table = 101.
  • Bucket of the hash table to which key 101 maps = 101 mod 7 = 3.
  • Since bucket-3 is already occupied, so collision occurs.
  • Separate chaining handles the collision by creating a linked list to bucket-3.
  • So, key 101 will be inserted in bucket-3 of the hash table as-





To gain better understanding about Separate Chaining,

Watch this Video Lecture



Next Article- Open Addressing



Get more notes and other study material of Data Structures.

Watch video lectures by visiting our YouTube channel LearnVidFun.
