Circuit Switching in Networking | Switching

Switching in Computer Networks-



The process of moving the data packets towards their destination by forwarding them from one port to the other port is called as switching.



Switching Techniques-



Various switching techniques are-





  1. Circuit Switching
  2. Message Switching
  3. Packet Switching



In this article, we will discuss about Circuit Switching.



Circuit Switching-



This switching technique operates in the following three phases-

  1. Establishing a circuit
  2. Transferring the data
  3. Disconnecting the circuit



1. Establishing A Circuit-



In this phase,

  • A circuit is established between the two ends.

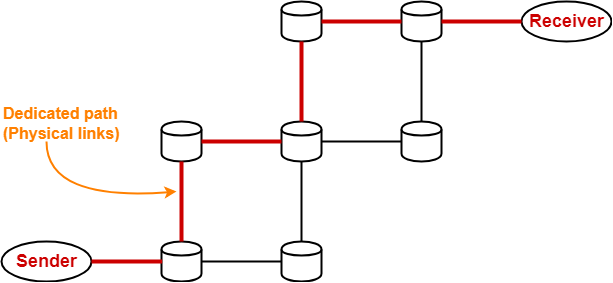

  • Circuit provides a dedicated path for data to travel from one to the other end.
  • Resources are reserved at intermediate switches which are used during the transmission.
  • The intermediate switches are connected by the physical links.





2. Transferring The Data-



After the circuit is established,

  • The entire data travels over the dedicated path from one end to the other end.



3. Disconnecting The Circuit-



After the data transfer is completed,

  • The circuit is torn down i.e. disconnected.



Total Time-



Total time taken to transmit a message in circuit switched network

= Connection set up time + Transmission delay + Propagation delay + Tear down time



where-

  • Transmission delay = Message size / Bandwidth
  • Propagation delay = (Number of hops on way x Distance between 2 hops) / Propagation speed



Also Read- Packet Switching



Advantages-



Circuit switching has the following advantages-

  • A well defined and dedicated path exists for the data to travel.
  • There is no header overhead.
  • There is no waiting time at any switch and the data is transmitted without any delay.
  • Data always reaches the other end in order.
  • No re ordering is required.



Disadvantages-



Circuit switching has the following disadvantages-

  • The channel is blocked for two ends only.
  • It is inefficient in terms of utilization of system resources.
  • The time required for establishing the circuit between the two ends is too long.
  • Dedicated channels require more bandwidth.
  • It is more expensive than other switching techniques.
  • Routing decisions can not be changed once the circuit is established.



Important Notes-



  • Circuit switching is implemented at physical layer.
  • Circuit switching is now outdated.



PRACTICE PROBLEM BASED ON CIRCUIT SWITCHING TECHNIQUE-



Problem-



Consider all links in the network use TDM with 24 slots and have a data rate of 1.536 Mbps. Assume that host A takes 500 msec to establish an end to end circuit with host B before begin to transmit the file. If the file is 512 kilobytes, then how much time will it take to send the file from host A to host B?



Solution-



Given-

  • Total bandwidth = 1.536 Mbps
  • Bandwidth is shared among 24 slots
  • Connection set up time = 500 msec
  • File size = 512 KB



Calculating Bandwidth Per User-



Total bandwidth = Number of users x Bandwidth per user

So, Bandwidth per user

= Total bandwidth / Number of users

= 1.536 Mbps / 24

= 0.064 Mbps

= 64 Kbps



Calculating Transmission Delay-



Transmission delay (Tt)

= File size / Bandwidth

= 512 KB / 64 Kbps

=  (512 x 210 x 8 bits) / (64 x 103 bits per sec)

= 65.536 sec

= 65536 msec



Calculating Time Required To Send File-



Time taken to send a file in circuit switched network

= Connection set up time + Transmission delay

= 500 msec + 65536 msec

= 66036 sec

= 66.036 msec



To gain better understanding about Circuit Switching,

Watch this Video Lecture



Next Article- Message Switching



Get more notes and other study material of Computer Networks.

Watch video lectures by visiting our YouTube channel LearnVidFun.
