Access Control in Networking-



Before you go through this article, make sure that you have gone through the previous article on Access Control.



We have discussed-

  • Access Control is a mechanism that controls the access of stations to the transmission link.
  • Broadcast links require the access control mechanism.
  • There are various access control methods-





  1. Time Division Multiplexing
  2. Polling
  3. CSMA / CD
  4. Token Passing
  5. Aloha



In this article, we will discuss about CSMA / CD.



CSMA / CD-



CSMA / CD stands for Carrier Sense Multiple Access / Collision Detection.



This access control method works as follows-



Step-01: Sensing the Carrier-



  • Any station willing to transmit the data senses the carrier.
  • If it finds the carrier free, it starts transmitting its data packet otherwise not.



How?



  • Each station can sense the carrier only at its point of contact with the carrier.
  • It is not possible for any station to sense the entire carrier.
  • Thus, there is a huge possibility that a station might sense the carrier free even when it is actually not.



Example-



Consider the following scenario-





At the current instance,

  • If station A senses the carrier at its point of contact, then it will find the carrier free.
  • But the carrier is actually not free because station D is already transmitting its data.
  • If station A starts transmitting its data now, then it might lead to a collision with the data transmitted by station D.



Step-02: Detecting the Collision-



In CSMA / CD,

  • It is the responsibility of the transmitting station to detect the collision.
  • For detecting the collision, CSMA / CD implements the following condition.
  • This condition is followed by each station-



Transmission delay >= 2 x Propagation delay



Meaning-



According to this condition,

  • Each station must transmit the data packet of size whose transmission delay is at least twice its propagation delay.
  • If the size of data packet is smaller, then collision detection would not be possible.



Length Of Data Packet-



We know-

  • Transmission delay = Length of data packet (L) / Bandwidth (B)
  • Propagation delay = Distance between the two stations (D) / Propagation speed (V)



Substituting values in the above condition, we get-

 L / B >= 2 x D / V

Thus,



L >= 2 x B x D / V



Understanding the Condition To Detect Collision With Example

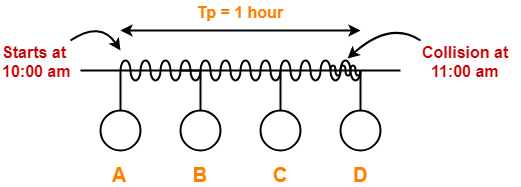

  • Consider at time 10:00 am, station A senses the carrier.
  • It finds the carrier free and starts transmitting its data packet to station D.
  • Let the propagation delay be 1 hour.

(We are considering station D for the worst case)





  • Let us consider the scenario at time 10:59:59:59 when the packet is about to reach the station D.
  • At this time, station D senses the carrier.
  • It finds the carrier free and starts transmitting its data packet.
  • Now, as soon as station D starts transmitting its data packet, a collision occurs with the data packet of station A at time 11:00 am.





  • After collision occurs, the collided signal starts travelling in the backward direction.
  • The collided signal takes 1 hour to reach the station A after the collision has occurred.
  • For station A to detect the collided signal, it must be still transmitting the data.
  • So, transmission delay of station A must be >= 1 hour + 1 hour >= 2 hours to detect the collision.
  • That is why, for detecting the collision, condition is Tt >= 2Tp.



Two cases are possible-



Case-01:



If no collided signal comes back during the transmission,

  • It indicates that no collision has occurred.
  • The data packet is transmitted successfully.



Case-02:



If the collided signal comes back during the transmission,

  • It indicates that the collision has occurred.
  • The data packet is not transmitted successfully.
  • Step-03 is followed.



Step-03: Releasing Jam Signal-



  • Jam signal is a 48 bit signal.
  • It is released by the transmitting stations as soon as they detect a collision.
  • It alerts the other stations not to transmit their data immediately after the collision.
  • Otherwise, there is a possibility of collision again with the same data packet.
  • Ethernet sends the jam signal at a frequency other than the frequency of data signals.
  • This ensures that jam signal does not collide with the data signals undergone collision.



Step-04: Waiting For Back Off Time-



  • After the collision, the transmitting station waits for some random amount of time called as back off time.
  • After back off time, it tries transmitting the data packet again.
  • If again the collision occurs, then station again waits for some random back off time and then tries again.
  • The station keeps trying until the back off time reaches its limit.
  • After the limit is reached, station aborts the transmission.
  • Back off time is calculated using Back Off Algorithm.



CSMA / CD Flowchart-



The following CSMA / CD flowchart represents the CSMA / CD procedure-



Efficiency-



Efficiency (η) = Useful Time / Total Time



Before a successful transmission,

  • There may occur many number of collisions.
  • 2 x Tp time is wasted during each collision.



Thus,

  • Useful time = Transmission delay of data packet = Tt
  • Useless time = Time wasted during collisions + Propagation delay of data packet = c x 2 x Tp + Tp
  • Here, c = Number of contention slots / collision slots.



Thus,





Here,

  • c is a variable.
  • This is because number of collisions that might occur before a successful transmission are variable.



Probabilistic Analysis shows-



Average number of collisions before a successful transmission = e



Substituting c = e in the above relation, we get-





Probabilistic Analysis-



Let us perform the probabilistic analysis to find the average number of collisions before a successful transmission.



Consider-

  • Number of stations connected to a CSMA / CD network = n
  • Probability of each station to transmit the data = p





Transmission will be successful only when-

  • One station transmits the data
  • Other (n-1) stations do not transmit the data.



Thus, Probability of successful transmission is given by-





Now, let us find the maximum value of Psuccessful transmission.

For maximum value, we put-





On solving,



At p = 1/n, we get the maximum value of Psuccessful transmission



Thus,

(Psuccessful transmission)max

= nC1 x 1/n x (1 – 1/n)n-1

= n x 1/n x (1 – 1/n)n-1

= (1 – 1/n)n-1



(Psuccessful transmission)max = (1 – 1/n)n-1



If there are sufficiently large number of stations i.e. n → ∞, then we have-





Number of times a station must try before successfully transmitting the data packet

= 1 / Pmax         (Using Poisson’s distribution)

= 1 / (1/e)

= e



From here, we conclude-

Average number of collisions that might occur before a successful transmission = e



Important Notes-



Note-01:



  • CSMA / CD is used in wired LANs.
  • CSMA / CD is standardized in IEEE 802.3



Note-02:



  • CSMA / CD only minimizes the recovery time.
  • It does not take any steps to prevent the collision until it has taken place.



Important Formulas-



  • Condition to detect collision: Transmission delay >= 2 x Propagation delay
  • Minimum length of data packets in CSMA / CD = 2 x Bandwidth x Distance / Speed
  • Efficiency of CSMA / CD = 1 / (1 + 6.44 x a) where a = Tp / Tt
  • Probability of successful transmission = nC1 x p x (1-p)n-1
  • Average number of collisions before a successful transmission = e



To gain better understanding about CSMA / CD,

Watch this Video Lecture



Next Article- Binary Exponential Back Off Algorithm



Get more notes and other study material of Computer Networks.

Watch video lectures by visiting our YouTube channel LearnVidFun.
