Self-Dual Functions | Dual Of Boolean Expression

Dual Of Boolean Expression-



To get a dual of any Boolean Expression, replace-

  • OR with AND i.e. + with .
  • AND with OR i.e. . with +
  • 1 with 0
  • 0 with 1



Dual of Boolean Expression Examples-



Following are examples of dual of Boolean Expressions-



Example-01:



  • Consensus  theorem is xy + x’z + yz = xy + x’z
  • Dual of Consensus theorem is (x + y)(x’ + z)(y + z) = (x + y)(x’ + z)



Example-02:



  • Boolean expression is xyz + x’yz’ + y’z = 1
  • Dual of the above Boolean expression is (x + y + z)(x’ + y + z’)(y’ + z) = 0



Self-Dual Functions-



When a function is equal to its dual, it is called as a Self dual function.



Example-



Consider the function : F (A , B , C) = AB + BC + CA



The dual of this function is-

Fd (A , B , C)

= (A + B)(B + C)(C + A)

= AB + BC + CA



Clearly, F (A , B , C) = Fd (A , B , C)

∴ F (A , B , C) is a self-dual function.



Conditions For Self-Dual Function-



The necessary and sufficient conditions for any function to be a self-dual function are-

  • The function must be a Neutral Function.
  • The function must not contain any mutually exclusive terms.



Mutually Exclusive Terms



Consider we have any term X consisting of some variables.

Then, a term obtained by complementing each variable of term X is called as its mutually exclusive term.



Examples-



  • (ABC , A’B’C’) are mutually exclusive terms.
  • (AB’C , A’BC’) are mutually exclusive terms.

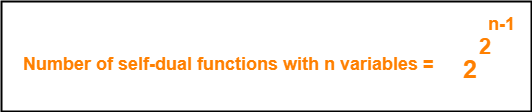

Number of Self-Dual Functions-





Here n = number of Boolean variables in the function.



Explanation-



  • For a function to be a self-dual function, the function must be a neutral function.
  • For a function to be a neutral function, number of minterms must be equal to number of maxterms.
  • So, we choose half of the terms i.e. 2n / 2 = 2n-1 terms.
  • Now, for each of these terms, we have two choices whether to include it or not in the self-dual function.



So, possible number of self-dual functions

= 2 x 2 x 2 x ……. x 2n-1

= 22^(n-1)



Relationship Between Neutral Functions & Self-dual Functions-



  • Every self-dual function is surely a neutral function.
  • But every neutral function need not be a self-dual function.





Important Property of Self-Dual Functions-



Self-duality is closed under complementation.



Example-



  • If the function F (A , B , C) = ∑ (0 , 1 , 2 , 4) is a self-dual function.
  • Then, its complement function F’ (A , B , C) = ∑ (3 , 5 , 6 , 7) will also be a self-dual function.



PRACTICE PROBLEM BASED ON SELF-DUAL FUNCTIONS-



Problem-



Consider the following functions-

  1. F (A , B , C) = ∑ (0 , 2 , 3)
  2. F (A , B , C) = ∑ (0 , 1 , 6 , 7)
  3. F (A , B , C) = ∑ (0 , 1 , 2 , 4)
  4. F (A , B , C) = ∑ (3 , 5 , 6 , 7)



Which of the above functions are self-dual functions?

  1. Only (iii)
  2. Only (ii)
  3. Only (iii) and (iv)
  4. All are self-dual functions



Solution-



Condition-01:



According to condition-01, for a function to be a self-dual function, the function must be a neutral function.



  • In all the given options, we have functions of 3 variables- A, B and C.
  • So, Neutral function must contain exactly 2n-1 = 23-1 = 4 minterms and 4 maxterms.
  • But Function-(i) contains only 3 minterms. So, it is not a neutral function.
  • Therefore, it can’t be a self-dual function and it gets eliminated.
  • We are now left with three other functions which satisfies condition-01 and are all neutral functions.
  • We will now use 2nd condition to eliminate the incorrect option(s).



Condition-02:



According to condition-02, a self-dual function must not contain mutually exclusive terms.

First, let us find which terms are mutually exclusive-



ABCMinterms
0000A’B’C’
1001A’B’C
2010A’BC’
3011A’BC
4100AB’C’
5101AB’C
6110ABC’
7111ABC



  • From here, pairs of mutually exclusive terms are (0,7) , (1,6) , (2,5) , (3,4).
  • Mutually exclusive terms are not allowed in self-dual functions.
  • Therefore, terms inside the pairs can not appear together.
  • But terms 0 and 7 appear together in the function-(ii).
  • So, it can not be a self-dual function.
  • But functions (iii) and (iv) do not contain any mutually exclusive terms.
  • Therefore, functions (iii) and (iv) are self-dual functions.



Thus, Option (C) is correct.



NOTE-



  • Functions (iii) and (iv) are complementary functions.
  • So, if one function is a self-dual function, the other function will also be a self-dual function.
  • This is because self-dual functions are closed under complementation.
