SR Flip Flop | Diagram | Truth Table | Excitation Table

Spread the love

Flip Flops-



Before you go through this article, make sure that you have gone through the previous article on Flip Flops.



We have discussed-

  • A Flip Flop is a memory element that is capable of storing one bit of information.
  • It is also called as Bistable Multivibrator since it has two stable states either 0 or 1.



There are following 4 basic types of flip flops-





  1. SR Flip Flop
  2. JK Flip Flop
  3. D Flip Flop
  4. T Flip Flop



In this article, we will discuss about SR Flip Flop.



SR Flip Flop-



  • SR flip flop is the simplest type of flip flops.
  • It stands for Set Reset flip flop.
  • It is a clocked flip flop.



Construction of SR Flip Flop-



There are following two methods for constructing a SR flip flop-





  1. By using NOR latch
  2. By using NAND latch



1. Construction of SR Flip Flop By Using NOR Latch-



This method of constructing SR Flip Flop uses-

  • NOR latch
  • Two AND gates



Logic Circuit-



The logic circuit for SR Flip Flop constructed using NOR latch is as shown below-





2. Construction of SR Flip Flop By Using NAND Latch-



This method of constructing SR Flip Flop uses-

  • NAND latch
  • Two NAND gates



Logic Circuit-



The logic circuit for SR Flip Flop constructed using NAND latch is as shown below-





Logic Symbol-

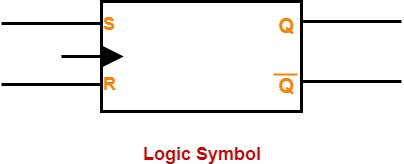

The logic symbol for SR Flip Flop is as shown below-





Truth Table-



The truth table for SR Flip Flop is as shown below-



INPUTS OUTPUTS
S R Qn

(Present State)

Qn+1

(Next State)

0 0 0 0
0 0 1 1
0 1 0 0
0 1 1 0
1 0 0 1
1 0 1 1
1 1 0 Indeterminate
1 1 1 Indeterminate

Truth Table



The above truth table may be reduced as-



INPUTS OUTPUTS REMARKS
S R Qn

(Present State)

Qn+1

(Next State)

States and Conditions
0 0 X Qn Hold State condition S = R = 0
0 1 X 0 Reset state condition S = 0 , R = 1
1 0 X 1 Set state condition S = 1 , R = 0
1 1 X Indeterminate Indeterminate state condition S = R = 1

Truth Table



Characteristic Equation-

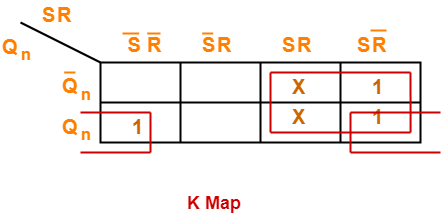

Draw a k map using the above truth table-





From here-

Qn+1 = ( SR + SR’ ) ( Qn +  Q’n ) + Qn ( S’R’ + SR’ )



Qn+1 = S + QnR’



Excitation Table-



The excitation table of any flip flop is drawn using its truth table.



What is excitation table?

For a given combination of present state Qn and next state Qn+1, excitation table tell the inputs required.



Qn Qn+1 S R
0 0 0 X
0 1 1 0
1 0 0 1
1 1 X 0

Excitation Table



To gain better understanding about SR Flip Flop,

Watch this Video Lecture



Next Article- JK Flip Flop



Get more notes and other study material of Digital Design.

Watch video lectures by visiting our YouTube channel LearnVidFun.
