Construction Of DFA-



Before you go through this article, make sure that you have gone through the previous article on Type-01 Problems.



Type-02 Problems-



In Type-02 problems, we will discuss the construction of DFA for languages consisting of strings starting with a particular substring.



Steps To Construct DFA-



Following steps are followed to construct a DFA for Type-02 problems-



Step-01:



  • Determine the minimum number of states required in the DFA.
  • Draw those states.



Use the following rule to determine the minimum number of states-



RULE

Calculate the length of substring.

All strings starting with ‘n’ length substring will always require minimum (n+2) states in the DFA.



Step-02:



  • Decide the strings for which DFA will be constructed.
  • The method for deciding the strings has been discussed in this Video.



Step-03:



  • Construct a DFA for the strings decided in Step-02.



Remember the following rule while constructing the DFA-



RULE

While constructing a DFA,

  • Always prefer to use the existing path.
  • Create a new path only when there exists no path to go with.



Step-04:



  • Send all the left possible combinations to the dead state.
  • Do not send the left possible combinations over the starting state.



PRACTICE PROBLEMS BASED ON CONSTRUCTION OF DFA-



Problem-01:



Draw a DFA for the language accepting strings starting with ‘ab’ over input alphabets ∑ = {a, b}



Solution-



Regular expression for the given language = ab(a + b)*



Step-01:



  • All strings of the language starts with substring “ab”.
  • So, length of substring = 2.



Thus, Minimum number of states required in the DFA = 2 + 2 = 4.

It suggests that minimized DFA will have 4 states.



Step-02:



We will construct DFA for the following strings-

  • ab
  • aba
  • abab



Step-03:



The required DFA is-



Problem-02:



Draw a DFA for the language accepting strings starting with ‘a’ over input alphabets ∑ = {a, b}



Solution-



Regular expression for the given language = a(a + b)*



Step-01:



  • All strings of the language starts with substring “a”.
  • So, length of substring = 1.



Thus, Minimum number of states required in the DFA = 1 + 2 = 3.

It suggests that minimized DFA will have 3 states.



Step-02:



We will construct DFA for the following strings-

  • a
  • aa



Step-03:



The required DFA is-



Problem-03:



Draw a DFA for the language accepting strings starting with ‘101’ over input alphabets ∑ = {0, 1}



Solution-



Regular expression for the given language = 101(0 + 1)*



Step-01:



  • All strings of the language starts with substring “101”.
  • So, length of substring = 3.



Thus, Minimum number of states required in the DFA = 3 + 2 = 5.

It suggests that minimized DFA will have 5 states.



Step-02:



We will construct DFA for the following strings-

  • 101
  • 1011
  • 10110
  • 101101

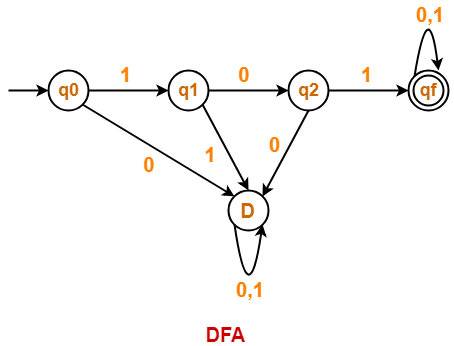

Step-03:



The required DFA is-



Problem-04:



Draw a DFA that accepts a language L over input alphabets ∑ = {0, 1} such that L is the set of all strings starting with ’00’.



Solution-



Regular expression for the given language = 00(0 + 1)*



Step-01:



  • All strings of the language starts with substring “00”.
  • So, length of substring = 2.



Thus, Minimum number of states required in the DFA = 2 + 2 = 4.

It suggests that minimized DFA will have 4 states.



Step-02:



We will construct DFA for the following strings-

  • 00
  • 000
  • 00000



Step-03:



The required DFA is-



Problem-05:



Construct a DFA that accepts a language L over input alphabets ∑ = {a, b} such that L is the set of all strings starting with ‘aa’ or ‘bb’.



Solution-



Regular expression for the given language = (aa + bb)(a + b)*



Step-01:



Minimum number of states required in the DFA = 5.

It suggests that minimized DFA will have 5 states.



Step-02:



We will construct DFA for the following strings-

  • aa
  • aaa
  • aaaa
  • bb
  • bbb
  • bbbb



Step-03:



The required DFA is-



Problem-06:



Construct a DFA that accepts a language L over input alphabets ∑ = {a, b} such that L is the set of all strings starting with ‘aba’.



Solution-



Regular expression for the given language = aba(a + b)*



Step-01:



  • All strings of the language starts with substring “aba”.
  • So, length of substring = 3.



Thus, Minimum number of states required in the DFA = 3 + 2 = 5.

It suggests that minimized DFA will have 5 states.



Step-02:



We will construct DFA for the following strings-

  • aba
  • abaa
  • abaab
  • abaaba



Step-03:



The required DFA is-



Also Read- Converting DFA to Regular Expression
