C-LOOK Algorithm | Disk Scheduling Algorithms

Disk Scheduling Algorithms-



Before you go through this article, make sure that you have gone through the previous article on Disk Scheduling.



We have discussed-

  • Disk scheduling algorithms are used to schedule multiple requests for accessing the disk.
  • The purpose of disk scheduling algorithms is to reduce the total seek time.



Various disk scheduling algorithms are-





In this article, we will discuss about C-LOOK Disk Scheduling Algorithm.



C-LOOK Disk Scheduling Algorithm-



  • Circular-LOOK Algorithm is an improved version of the LOOK Algorithm.
  • Head starts from the first request at one end of the disk and moves towards the last request at the other end servicing all the requests in between.
  • After reaching the last request at the other end, head reverses its direction.
  • It then returns to the first request at the starting end without servicing any request in between.
  • The same process repeats.



Also Read- SCAN Disk Scheduling Algorithm



Advantages-



  • It does not causes the head to move till the ends of the disk when there are no requests to be serviced.
  • It reduces the waiting time for the cylinders just visited by the head.
  • It provides better performance as compared to LOOK Algorithm.
  • It does not lead to starvation.
  • It provides low variance in response time and waiting time.



Disadvantages-



  • There is an overhead of finding the end requests.



Also Read- C-SCAN Disk Scheduling Algorithm



PRACTICE PROBLEMS BASED ON C-LOOK DISK SCHEDULING ALGORITHM-



Problem-01:



Consider a disk queue with requests for I/O to blocks on cylinders 98, 183, 41, 122, 14, 124, 65, 67. The C-LOOK scheduling algorithm is used. The head is initially at cylinder number 53 moving towards larger cylinder numbers on its servicing pass. The cylinders are numbered from 0 to 199. The total head movement (in number of cylinders) incurred while servicing these requests is _______.



Solution-





Total head movements incurred while servicing these requests

= (65 – 53) + (67 – 65) + (98 – 67) + (122 – 98) + (124 – 122) + (183 – 124) + (183 – 14) + (41 – 14)

= 12 + 2 + 31 + 24 + 2 + 59 + 169 + 27

= 326



Alternatively,

Total head movements incurred while servicing these requests

= (183 – 53) + (183 – 14) + (41 – 14)

= 130 + 169 + 27

= 326



Problem-02:

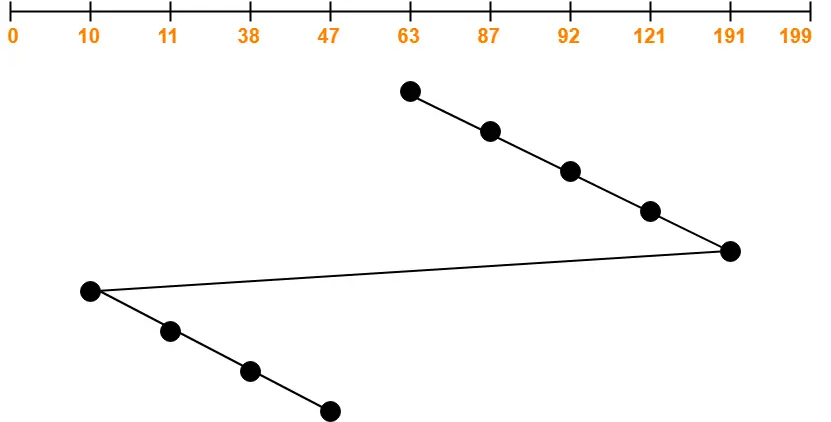

Consider a disk queue with requests for I/O to blocks on cylinders 47, 38, 121, 191, 87, 11, 92, 10. The C-LOOK scheduling algorithm is used. The head is initially at cylinder number 63 moving towards larger cylinder numbers on its servicing pass. The cylinders are numbered from 0 to 199. The total head movement (in number of cylinders) incurred while servicing these requests is _______.



Solution-





Total head movements incurred while servicing these requests

= (87 – 63) + (92 – 87) + (121 – 92) + (191 – 121) + (191 – 10) + (11 – 10) + (38 – 11) + (47 – 38)

= 24 + 5 + 29 + 70 + 181 + 1 + 27 + 9

= 346



Alternatively,

Total head movements incurred while servicing these requests

= (191 – 63) + (191 – 10) + (47 – 10)

= 128 + 181 + 37

= 346



To gain better understanding about C-LOOK Disk Scheduling Algorithm,

Watch this Video Lecture



Get more notes and other study material of Operating System.

Watch video lectures by visiting our YouTube channel LearnVidFun.
