Page Replacement Algorithms | Important Results

Page Replacement Algorithms-



Before you go through this article, make sure that you have gone through the previous article on Page Replacement Algorithms.



We have discussed-

  • When a page fault occurs, the required page has to be brought from the secondary memory.
  • If all the frames of main memory are already occupied, then a page has to be replaced.
  • Page replacement algorithms help to decide which page should be replaced.



In this article, we will discuss some important results.



Important Results-



Result-01: For a Reference String Consisting Of Repeated Sequence Of Page Numbers-



For such a reference string,

  • Optimal page replacement algorithm replaces the most recently used page to minimize the page faults.
  • This is because most recently page will be required after the longest time.
  • Thus, Optimal page replacement algorithm acts as Most Recently Used (MRU) page replacement algorithm.



In other words,

  • MRU page replacement algorithm will behave as Optimal page replacement algorithm.
  • MRU page replacement algorithm gives the optimal performance.



Example-



Consider the following reference string consisting of a repeated sequence of page numbers-

1, 2, 3, 4, 5, 6, 1, 2, 3, 4, 5, 6, 1, 2, 3, 4, 5, 6, 1, 2, 3, 4, 5, 6



Here,

  • Both Optimal and MRU page replacement algorithm replaces the most recently used page.
  • Most recently used page will be required after the longest time.
  • Hence, both these algorithms give the optimal performance.





Total number of page faults occurred = 12



NOTES-



Note-01:



  • These are the minimum number of page faults that are possible.
  • If any other page replacement algorithm is used, it will surely give rise to more number of page faults.
  • FIFO and LRU page replacement algorithm give rise to 24 number of page faults.



Note-02:



  • CPU may generate such a reference string when executing loops.
  • This is because while executing loops, same set of instructions have to be executed again and again.



Note-03:



  • Principle of locality states that the next reference would be most probably from the most recently used pages.
  • Here, the behavior of Optimal page replacement algorithm contradicts with the principle of locality.
  • Here, Optimal algorithm replaces the most recently used page to give the optimal performance.
  • So, from here we can infer that principle of locality does not hold true in certain scenarios.



Result-02: For a Reference String Where First Half String Is a Mirror Image Of Other Half-



For such a reference string,

  • Optimal page replacement algorithm replaces the least recently used page or firstly arrived page to minimize page faults.
  • This is because such a page will be required after the longest time.
  • Thus, Optimal page replacement algorithm acts as LRU and FIFO page replacement algorithm.



In other words,

  • LRU and FIFO page replacement algorithm will behave as Optimal page replacement algorithm.
  • LRU and FIFO page replacement algorithm gives the optimal performance.



Example-

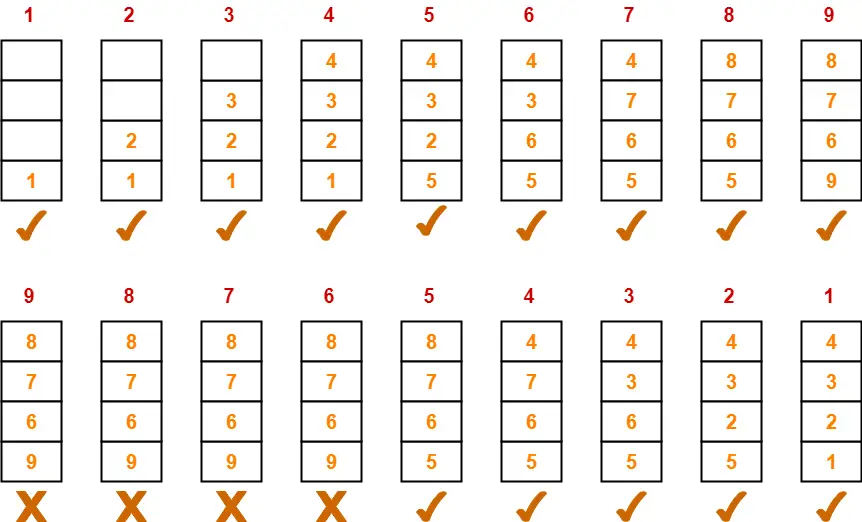

Consider the following reference string where first half string is a mirror image of other half string-

1, 2, 3, 4, 5, 6, 7, 8, 9, 9, 8, 7, 6, 5, 4, 3, 2, 1



Here,

  • Optimal, LRU and FIFO page replacement algorithms replaces the least recently used or firstly arrived page.
  • Least recently used or firstly arrived page will be required after the longest time.
  • Hence, all these algorithms give the optimal performance.





Total number of page faults occurred = 14



  • These are the minimum number of page faults that are possible.
  • If any other page replacement algorithm is used, it will surely give rise to more number of page faults.



Remember-



  • Optimal page replacement algorithm always gives the best performance in every scenario.
  • This is because it foresees the future and takes the form of an algorithm which gives the best performance in that scenario.



Next Article- Segmentation in OS



Get more notes and other study material of Operating System.

Watch video lectures by visiting our YouTube channel LearnVidFun.
