Semaphore | Semaphore in OS | Counting Semaphore

Process Synchronization-



Before you go through this article, make sure that you have gone through the previous article on Process Synchronization.



We have discussed-

  • Process Synchronization provides a synchronization among the processes.
  • Synchronization mechanisms allow the processes to access critical section in a synchronized manner.
  • This avoids the inconsistent results.



Semaphores in OS-



  • A semaphore is a simple integer variable.
  • It is used to provide synchronization among multiple processes running concurrently.

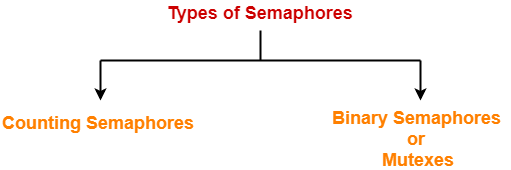

Types of Semaphores-



There are mainly two types of semaphores-





  1. Counting Semaphores
  2. Binary Semaphores or Mutexes



In this article, we will discuss about Counting Semaphores.

Learn about Binary Semaphores.



Counting Semaphores-



A counting semaphore is implemented as-



struct semaphore
{
   int value;
   Queue type L;
}

Wait (semaphore s)
{
   s.value = s.value - 1;
   if (s.value < 0)
   {
      put process (PCB) in L;
      sleep();
   }
   else
      return;
}

Signal (semaphore s)
{
   s.value = s.value + 1;
   if (s.value <=0 )
   {
       select a process (PCB) from L;
       wake up();
   }
}



Explanation-



The above implementation of counting semaphore has been explained in the following points-



Point-01:



A counting semaphore has two components-

  • An integer value
  • An associated waiting list (usually a queue)



Point-02:



The value of counting semaphore may be positive or negative.

  • Positive value indicates the number of processes that can be present in the critical section at the same time.
  • Negative value indicates the number of processes that are blocked in the waiting list.



Point-03:



  • The waiting list of counting semaphore contains the processes that got blocked when trying to enter the critical section.
  • In waiting list, the blocked processes are put to sleep.
  • The waiting list is usually implemented using a queue data structure.
  • Using a queue as waiting list ensures bounded waiting.
  • This is because the process which arrives first in the waiting queue gets the chance to enter the critical section first.



Point-04:



  • The wait operation is executed when a process tries to enter the critical section.
  • Wait operation decrements the value of counting semaphore by 1.



Then, following two cases are possible-



Case-01: Counting Semaphore Value >= 0



  • If the resulting value of counting semaphore is greater than or equal to 0, process is allowed to enter the critical section.



Case-02: Counting Semaphore Value < 0



  • If the resulting value of counting semaphore is less than 0, process is not allowed to enter the critical section.
  • In this case, process is put to sleep in the waiting list.



Point-05:



  • The signal operation is executed when a process takes exit from the critical section.
  • Signal operation increments the value of counting semaphore by 1.



Then, following two cases are possible-



Case-01: Counting Semaphore <= 0



  • If the resulting value of counting semaphore is less than or equal to 0, a process is chosen from the waiting list and wake up to execute.



Case-02: Counting Semaphore > 0



  • If the resulting value of counting semaphore is greater than 0, no action is taken.



Point-06:



  • By adjusting the value of counting semaphore, the number of processes that can enter the critical section can be adjusted.
  • If the value of counting semaphore is initialized with N, then maximum N processes can be present in the critical section at any given time.



Point-07:



  • To implement mutual exclusion, the value of counting semaphore is initialized with 1.
  • It ensures that only one process can be present in the critical section at any given time.



Point-08:



In a system,

  • Consider n units of a particular non-shareable resource are available.
  • Then, n processes can use these n units at the same time.
  • So, the access to these units is kept in the critical section.
  • The value of counting semaphore is initialized with ‘n’.
  • When a process enters the critical section, the value of counting semaphore decrements by 1.
  • When a process exits the critical section, the value of counting semaphore increments by 1.



In such scenarios, value of counting semaphore is initialized with value greater than 1.



Point-09:



  • Other names by which wait operation may be referred : Down operation, P operation.
  • Other names by which signal operation may be referred : Up operation, V operation, Release operation.



To gain better understanding about Counting Semaphores,

Watch this Video Lecture



Next Article- Practice Problems On Counting Semaphores



Get more notes and other study material of Operating System.

Watch video lectures by visiting our YouTube channel LearnVidFun.
