Breadth First Search-



  • Breadth First Search or BFS is a graph traversal algorithm.
  • It is used for traversing or searching a graph in a systematic fashion.
  • BFS uses a strategy that searches in the graph in breadth first manner whenever possible.
  • Queue data structure is used in the implementation of breadth first search.



BFS Example-



Consider the following graph-





The breadth first search traversal order of the above graph is-

A, B, C, D, E, F



Breadth First Search Algorithm-



BFS (V,E,s)



for each vertex v in V – {s}

do

color[v] ← WHITE

d[v] ← ∞

π[v] ← NIL

color[s] = GREY

d[s] ← 0

π[s] ← NIL

Q ← { }

ENQUEUE (Q,s)

While Q is non-empty

do v ← DEQUEUE (Q)

for each u adjacent to v

do if color[u] ← WHITE

then color[u] ← GREY

d[u] ← d[v] + 1

π[u] ← v

ENQUEUE (Q,u)

color[v] ← BLACK



Explanation-



The above breadth first search algorithm is explained in the following steps-



Step-01



Create and maintain 3 variables for each vertex of the graph.

For any vertex ‘v’ of the graph, these 3 variables are-



1. color[v]-



  • This variable represents the color of the vertex v at the given point of time.
  • The possible values of this variable are- WHITE, GREY and BLACK.
  • WHITE color of the vertex signifies that it has not been discovered yet.
  • GREY color of the vertex signifies that it has been discovered and it is being processed.
  • BLACK color of the vertex signifies that it has been completely processed.



2. Π[v]-



This variable represents the predecessor of vertex ‘v’.



3. d[v]-



This variable represents the distance of vertex v from the source vertex.



Step-02



For each vertex v of the graph except source vertex, initialize the variables as-

  • color[v] = WHITE
  • π[v] = NIL
  • d[v] = ∞



For source vertex S, initialize the variables as-

  • color[S] = GREY
  • π[S] = NIL
  • d[S] = 0



Step-03



Now, enqueue source vertex S in queue Q and repeat the following procedure until the queue Q becomes empty-

1. Dequeue vertex v from queue Q.

2. For all the adjacent white vertices u of vertex v,

do-

color[u] = GREY

d[u] = d[v] + 1

π[u] = v

Enqueue (Q,u)

3. Color vertex v to black.



BFS Time Complexity-



The total running time for Breadth First Search is O (V+E).



Also Read- Depth First Search



PRACTICE PROBLEM BASED ON BREADTH FIRST SEARCH-



Problem-

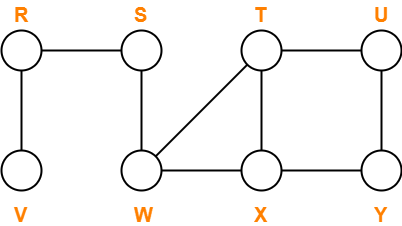

Traverse the following graph using Breadth First Search Technique-





Consider vertex S as the starting vertex.



Solution-



Step-01:



For all the vertices v except source vertex S of the graph, we initialize the variables as-

  • color[v] = WHITE
  • π[v] = NIL
  • d[v] = ∞



For source vertex S, we initialize the variables as-

  • color[S] = GREY
  • π[S] = NIL
  • d[S] = 0



We enqueue the source vertex S in the queue Q.

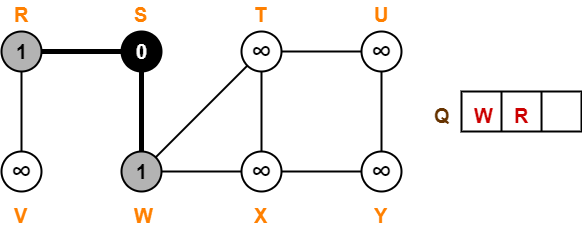

Step-02:



  • Dequeue vertex S from the queue Q
  • For all adjacent white vertices ‘v’ (vertices R and W) of vertex S, we do-



  1. color[v] = GREY
  2. d[v] = d[S] + 1 = 0 + 1 = 1
  3. π[v] = S
  4. Enqueue all adjacent white vertices of S in queue Q



  • color[S] = BLACK





Step-03:



  • Dequeue vertex W from the queue Q
  • For all adjacent white vertices ‘v’ (vertices T and X) of vertex W, we do-



  1. color[v] = GREY
  2. d[v] = d[W] + 1 = 1 + 1 = 2
  3. π[v] = W
  4. Enqueue all adjacent white vertices of W in queue Q



  • color[W] = BLACK





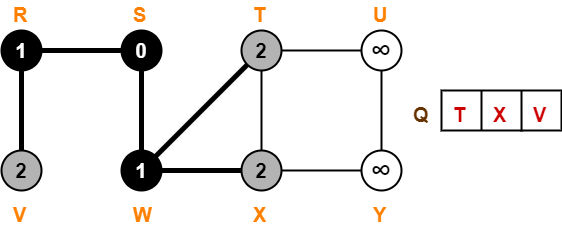

Step-04:



  • Dequeue vertex R from the queue Q
  • For all adjacent white vertices ‘v’ (vertex V) of vertex R, we do-



  1. color[v] = GREY
  2. d[v] = d[R] + 1 = 1 + 1 = 2
  3. π[v] = R
  4. Enqueue all adjacent white vertices of R in queue Q



  • color[R] = BLACK

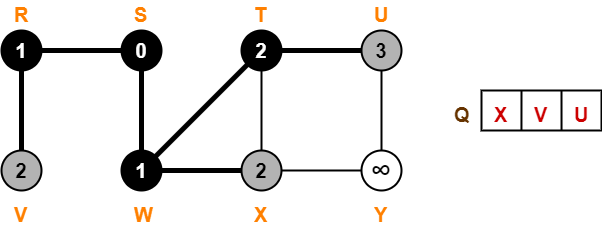

Step-05:



  • Dequeue vertex T from the queue Q
  • For all adjacent white vertices ‘v’ (vertex U) of vertex T, we do-



  1. color[v] = GREY
  2. d[v] = d[T] + 1 = 2 + 1 = 3
  3. π[v] = T
  4. Enqueue all adjacent white vertices of T in queue Q



  • color[T] = BLACK





Step-06:



  • Dequeue vertex X from the queue Q
  • For all adjacent white vertices ‘v’ (vertex Y) of vertex X, we do-



  1. color[v] = GREY
  2. d[v] = d[X] + 1 = 2 + 1 = 3
  3. π[v] = X
  4. Enqueue all adjacent white vertices of X in queue Q



  • color[X] = BLACK





Step-07:



  • Dequeue vertex V from the queue Q
  • There are no adjacent white vertices to vertex V.
  • color[V] = BLACK





Step-08:



  • Dequeue vertex U from the queue Q
  • There are no adjacent white vertices to vertex U.
  • color[U] = BLACK





Step-09:



  • Dequeue vertex Y from the queue Q
  • There are no adjacent white vertices to vertex Y.
  • color[Y] = BLACK





Since, all the vertices have turned black and the queue has got empty, so we stop.

This is how any given graph is traversed using Breadth First Search (BFS) technique.



To gain better understanding about Breadth First Search Algorithm,

Watch this Video Lecture



Next Article- Prim’s Algorithm



Get more notes and other study material of Design and Analysis of Algorithms.

Watch video lectures by visiting our YouTube channel LearnVidFun.
