Kruskal’s Algorithm-



  • Kruskal’s Algorithm is a famous greedy algorithm.
  • It is used for finding the Minimum Spanning Tree (MST) of a given graph.
  • To apply Kruskal’s algorithm, the given graph must be weighted, connected and undirected.



Kruskal’s Algorithm Implementation-



The implementation of Kruskal’s Algorithm is explained in the following steps-



Step-01:



  • Sort all the edges from low weight to high weight.



Step-02:



  • Take the edge with the lowest weight and use it to connect the vertices of graph.
  • If adding an edge creates a cycle, then reject that edge and go for the next least weight edge.



Step-03:



  • Keep adding edges until all the vertices are connected and a Minimum Spanning Tree (MST) is obtained.



Thumb Rule to Remember



The above steps may be reduced to the following thumb rule-

  • Simply draw all the vertices on the paper.
  • Connect these vertices using edges with minimum weights such that no cycle gets formed.



Kruskal’s Algorithm Time Complexity-



Worst case time complexity of Kruskal’s Algorithm

= O(ElogV) or O(ElogE)



Analysis-



  • The edges are maintained as min heap.
  • The next edge can be obtained in O(logE) time if graph has E edges.
  • Reconstruction of heap takes O(E) time.
  • So, Kruskal’s Algorithm takes O(ElogE) time.
  • The value of E can be at most O(V2).
  • So, O(logV) and O(logE) are same.



Special Case-



  • If the edges are already sorted, then there is no need to construct min heap.
  • So, deletion from min heap time is saved.
  • In this case, time complexity of Kruskal’s Algorithm = O(E + V)



Also Read- Prim’s Algorithm



PRACTICE PROBLEMS BASED ON KRUSKAL’S ALGORITHM-



Problem-01:



Construct the minimum spanning tree (MST) for the given graph using Kruskal’s Algorithm-





Solution-



To construct MST using Kruskal’s Algorithm,

  • Simply draw all the vertices on the paper.
  • Connect these vertices using edges with minimum weights such that no cycle gets formed.



Step-01:





Step-02:





Step-03:





Step-04:





Step-05:





Step-06:

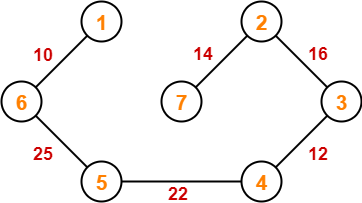

Step-07:





Since all the vertices have been connected / included in the MST, so we stop.

Weight of the  MST

= Sum of all edge weights

= 10 + 25 + 22 + 12 + 16 + 14

= 99 units
